Constructed from impored marine-grade 15mm 15-ply birch plywood, the high-frequency horn can be adjusted to 50–100° (H)×55°
(V) based on the venue. The cabinet's horizontal angle is adjustable from 15° to 55°. With anti-salt spray, high-temperature resistance, antibacterial, and moisture-resistant treatments inside and outside, it provides all-weather capability. Diverse hanging accessories
meet any venue's suspension requirements. Amplifer protections cover shor circuit, overload, over-temp

Application scope：Church，Conference Rooms，Multi-purpose Halls，Monitoring

Parameters

Application scope：Church，Conference Rooms，Multi-purpose Halls，Monitoring

Previous : MF-12AC Multi-Angle Single 12 Inch Full-Range Speaker Next : MF-8AC Multi-Angle Single 8 Inch Full-Range Speaker

Copy product links

Long by picture save/share

INQUIRY

Online Inquiry MORE+

Name *
Phone *
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

PRODUCT PARAMETERS

Configuration	Active 2-Way Speaker
Module Composition	LF: 1×10''，HF: 1×1.45''
Frequency Response	63Hz-20kHz
Max SPL	126dB
Coverage Angle	50-100°(H)×55°(V)
Amplifier Module	Single-channel Class D amplifier
Output Power	300W×1/8Ω
THD	<0.01%
Input Sensitivity	Balanced signal: 0.77V Unbalanced signal: 1.4V
Connection	1x XLR Analog In, 1x LINK Out
Dimensions (H×W×D)	500×382×303(mm)
Weight (Net)	15kg
Power Requirements	100-240V，AC50-60Hz
Power Connection	powerCON 20 Input with Loop-Through Output

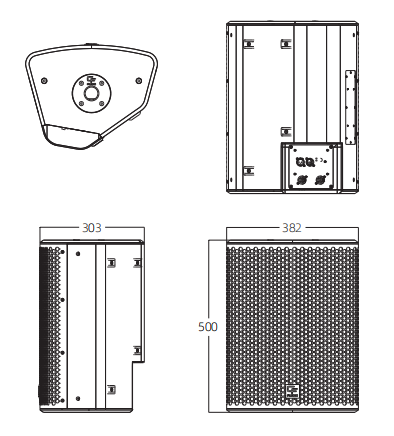

PRODUCT DIMENSIONS

About CF-AUDIO

Guangzhou CF Audio Manufacture Co., Ltd., also known as CF Audio, is a leading enterprise in professional audio, specializing in R&D, design, production, and service.

Recommended

GLA-20s Single 18-Inch Line Array Subwoofer

GLA-20 Dual 10-Inch Line Array Speaker

GLA-3105S Dual 10-Inch 3-Way Line Array Subwoofer

GLA-3105 Dual 10-Inch 3-Way Line Array Speaker

GLA-4125 Dual 12-Inch 4-Way Line Array Speaker

WeChat

China Mainland Headquarters

ADD: No. 15-17, Wangang Road, Hualong Town, Panyu District, Guangzhou

Phone: +86 186-6506-1112

Tel: +86 020-8455-8181

Website: www.cfaudio-pro.com

E-mail: Jackzhang@cfaudiopro.com

Vietnam Distributor

LQS GROUP COMPANY LIMITED

ADD: C08-19, Geleximco Urban, Le Trong Tan Street, Duong Noi Ward, Ha Dong District, Ha Noi City

Email : info@lqs.vn

Website: www.lqs.vn

Tel: +84 0922 232 232

ABOUT

BRAND INTRODUCTION NEWS CERTIFICATE

QUICK MENU

PRODUCT CASE

SERVICE

CONTACT DOWNLOAD MESSAGE

NOTICE: Due to the development of the enterprise and product updates, We keep the rightsfor any changes without notice, thanks for your attention.

CONTACT US

ADD: No. 15-17, Wangang Road, Hualong Town, Panyu District, Guangzhou City, Guangdong, China.

TEL: +86 020-84558181 186-6506-1112

E-MAIL: 185373472@qq.com

Vietnam Distributor

LQS GROUP COMPANY LIMITED

ADD: C08-19, Geleximco Urban, Le Trong Tan Street, Duong Noi Ward, Ha Dong District, Ha Noi City

Email : info@lqs.vn

Website: www.lqs.vn

Tel: +84 0922 232 232

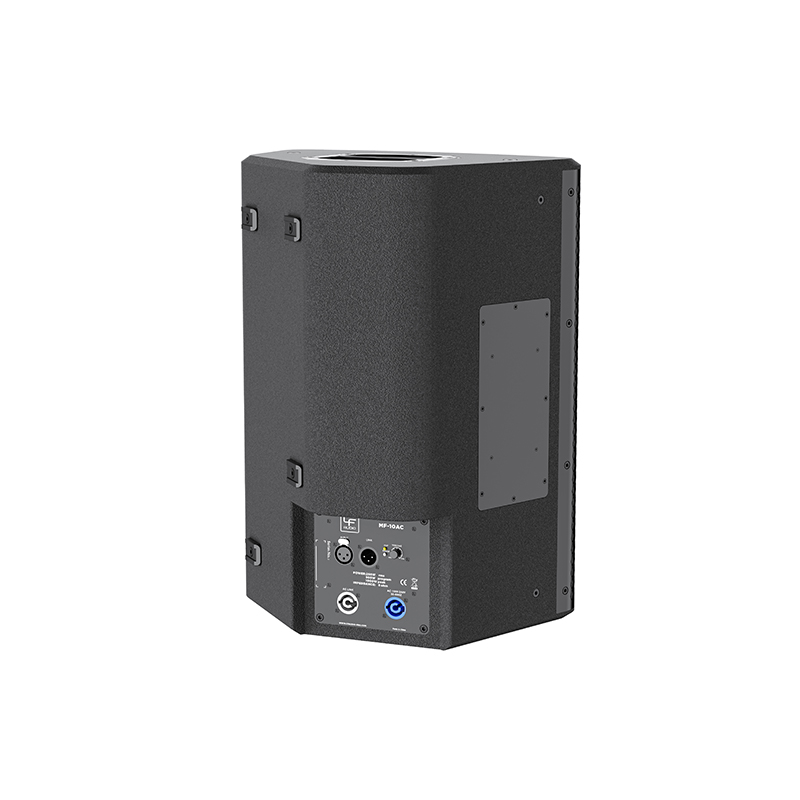

MF-10AC Multi-Angle Single 10 Inch Full-Range Speaker
