The ACFC-18 line array subwoofer integrates a high-perormance DSP system power amplifer module and is equipped with 1×18" high-excursion low-frequency driver. With a high-perormance DSP, it can confgure scene parameters for various applications and speaker quantities. Factor-preset with 4 modes—Perormance, Conference, Pary, Neutral—it enables easy use in diferent
venues without additional setup. It includes adjustable suppor rods, cables, power cords, and auto-locking mechanisms for
convenie

Application scope：Banquet Halls，Auditoriums，Conference Rooms，Multi-purpose Halls， Mobile performances

Parameters

Application scope：Banquet Halls，Auditoriums，Conference Rooms，Multi-purpose Halls， Mobile performances

Previous : LK-66 6-Unit Professional Column Speaker Next : MA-6 Single 6-Inch Coaxial Full-Range Speaker

Copy product links

Long by picture save/share

INQUIRY

Online Inquiry MORE+

Name *
Phone *
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

PRODUCT PARAMETERS

Configuration	Active Subwoofer
Module Composition	1×18''
Frequency Response 3	35Hz-200Hz
Max SPL	134dB
Amplifier Module	3-channel Class D amplifier + DSP
Output Power	2x500W+1500W @8 ohms
THD	<0.01%
Input Sensitivity	1.38V/5dBu
Connection	2ch XLR Analog Input with Loop Output
Dimensions (H×W×D)	690×560×575(mm)
Weight (Net)	50.5kg
Power Requirements	100-240V，AC50-60Hz
Power Connection	powerCON 20 Input with Loop-Through Output

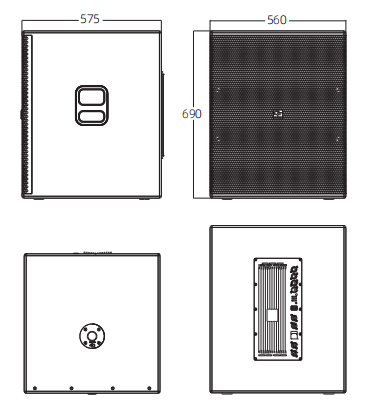

PRODUCT DIMENSIONS
